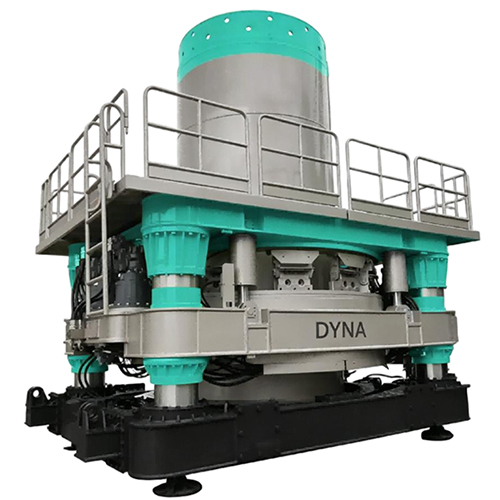

Hydraulic Casing Rotator for Foundation Piling

About Hydraulic Casing Rotator for Foundation Piling

The casing rotator is a heavy-duty special equipment for deep foundation piling construction. It is mainly matched with crawler cranes and impact grabs for full casing pile foundation operations, solving complex geological problems that cannot be handled by traditional piling equipment. Equipped with a high-power full-hydraulic drive system, the machine outputs super-large rotating torque to drive the steel casing for 360 continuous rotation and uniform downward penetration. It effectively breaks and cuts the friction resistance between the soil layer and the casing, cooperating with impact grabs to complete soil excavation, slag removal and hole forming. The body is integrally welded with thickened high-strength steel plates, featuring rigid structure, large bearing capacity, stable operation and strong impact resistance. Compatible with straight-seam steel casings, single-row and double-row threaded steel casings, it easily penetrates silt, quicksand, backfill layers, pebble layers, boulders, karst and other collapse-prone complex strata. Widely applied in super-high-rise building pile foundations, subways, bridges, deep foundation pit cofferdams, secant piles, old pile removal and underground obstacle clearance, it fundamentally eliminates hole collapse, shrinkage and deviation, greatly improving construction safety and hole-forming quality.

 Core Functions: Driven by high-torque full-hydraulic rotary power, the equipment drives the steel casing for 360 continuous rotary drilling, effectively peeling and cutting soil friction to realize rotary pressing and synchronous hole forming. The steel casing follows up for full-wall protection during construction, completely isolating the inflow of underground water, quicksand and silt and eliminating collapse in soft and loose strata. Cooperating with impact grabs to excavate soil, stones and sediment in real time, it ensures clean, vertical and regular boreholes. After pile completion, reverse rotation loosens the casing for easy extraction and recycling. It also efficiently breaks and removes waste piles and underground hard obstacles, suitable for various reconstruction and renovation piling projects.

 Application Scenarios: Deep foundation piling for high-speed railways, subways, sea-crossing bridges, viaducts and super high-rises; drilling in extremely complex collapse-prone strata including silt, quicksand, thick backfill soil, pebbles, boulders and karst; secant pile water-stop support, deep foundation pit cofferdam and large-diameter deep-hole casing piling; old pile removal, underground obstacle clearance, foundation reconstruction and reinforcement and other high-end key & difficult foundation projects.

 Product Advantages: Full hydraulic drive with sufficient torque reserve, stable rotation and continuous strong power, avoiding engine stall and casing sticking in hard soil, pebble and boulder strata. Reinforced integral body structure is vibration and fatigue resistant, supporting 24-hour uninterrupted high-frequency operation. The four-jaw symmetrical clamping structure ensures uniform stress and firm locking without slipping or casing deformation, achieving ultra-high hole-forming accuracy. Compatible with all types of steel casings, it integrates casing drilling, hole forming, old pile removal and casing recycling into one device. It perfectly solves complex stratum difficulties that traditional rotary drilling cannot handle, with higher construction efficiency and safety, effectively shortening the construction period and reducing comprehensive project costs.

 Compatible Equipment: Perfectly matched with crawler cranes, rotary drilling rigs, impact grabs and double-rope grabs. Compatible with all specifications of single-row threaded steel casings, double-row threaded steel casings and large-diameter straight-seam steel casings, supporting complete construction with various auxiliary piling equipment.
